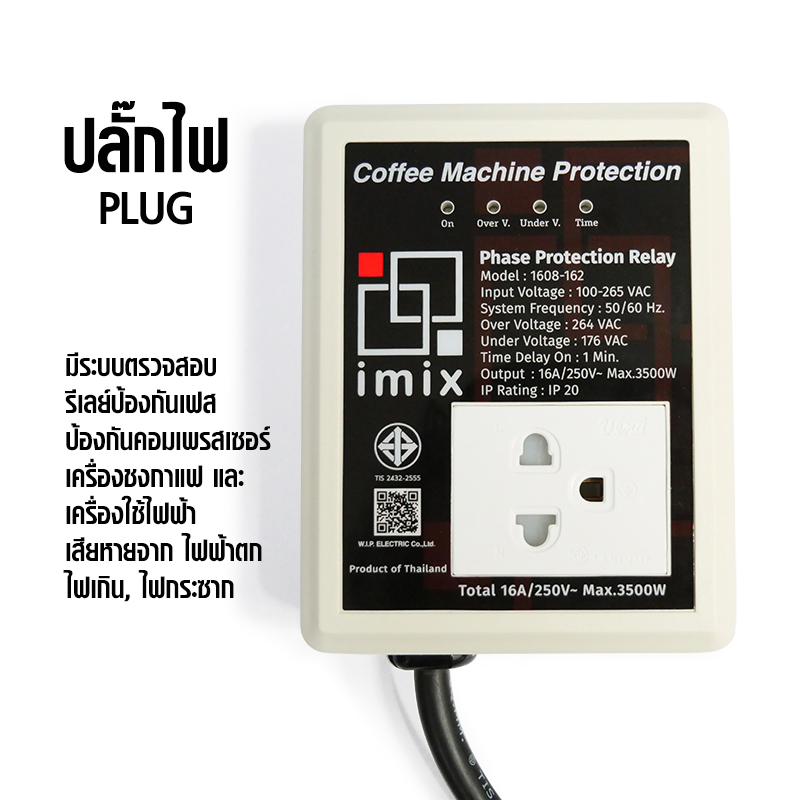

Name: Plug or inspection device and protect the compressor Coffee machine
Brand: IMIX
SKU: 1608-162
Price: 990 THB
Availability: InStock

QuantityUnit(s)	Discount per unit	Net price per unit
{{(typeof focus_pdata.price_list[idx+1] == 'undefined')?('≥ '+price_row.min_quantity):((price_row.min_quantity < (focus_pdata.price_list[idx+1].min_quantity - 1))?(price_row.min_quantity+' - '+(focus_pdata.price_list[idx+1].min_quantity - 1)):price_row.min_quantity)}}	{{number_format(((focus_pdata.price_old === null)?focus_pdata.price:focus_pdata.price_old) - price_row.price,2)}} THB	{{number_format(price_row.price,2)}} THB



In-stock	PCS
Quantity (PCS)	- +
BUY NOW Add to cart BUY NOW Add to cart This item has already been added to your cart 0 PCS
Juristic Cer. Book Bank Guarantee By LnwPay

Chat with seller	Call 028808136 imixapresso Add @koffeemart
{{ size_chart_name }}
Category	Phase protection relay plug
Type	New item
Condition
Type	Pre-owned Items
Condition
Item status
Prepare duration
Join promotions


Share :

Highlight	Power plug or inspection device and protect the compressor Coffee machine refrigerator, freezer, and other electrical equipment The unit is designed to protect the compressor from power failure, overload, shortage, The delay circuit will start counting down the time until the set time has been reached. The relay will continue to work. (Energize) automatically pre-delay Operation of the refrigerator so that the internal refrigerant level is reduced to normal levels before operating again. to protect the compressor from damage
Information	Item weight Barcode Created time Last updated on
Item description	Power plug or inspection device and protect the compressor Coffee machine refrigerator, freezer, and other electrical equipment The unit is designed to protect the compressor from power failure, overload, shortage, Help extend the service life of the compressor. When there is a voltage drop or increase more than 20% of normal pressure The relay automatically cuts off the circuit to protect the compressor from damage. When the pressure returns to normal through the set value The delay circuit will start counting down the time until the set time has been reached. The relay will continue to work. (Energize) automatically pre-delay Operation of the refrigerator so that the internal refrigerant level is reduced to normal levels before operating again. to protect the compressor from damage Specification : Feature Power consumption : 1.2 W Input voltage : 100-265 VAC System frequency : 50/60 Hz. Accuracy : +0.5 % of normal voltage Range Over voltage protection : 20% (264 VAC) Under voltage protection : 20% (176 VAC) Time delay (On) : Preset at 1 min. Time delay (Off) : Under voltage : 3 sec. (Fixed) : Over voltage: 2 sec. (Fixed) Relay out put : Output Type : 2-pole change over (SPST) Contact rating : 16A at 250VAC, Max. 3500W Operations : Mechanical : 2x10⁷ times Electrical : 1 x10⁵times Relay reset : Automatic Environmental Timperature range : -10 to +55°c Storage temperature : -10 to +70°c Humidity operation : Max 85% RH Encloser Output type : Power plug Indicator : LED 3 mm. Dimension (mm) : 93 x 120 x 44 Weight : 380g Phase protection relay,compressor protection,plug,power protection plug,Compressor protection plug,
Conditions
Tags	Phase portection relay compressor protection plug power protection plug Compressor protection plug ปลั๊ก ปลั๊กพวง ปลั๊กป้องไฟตก ปลั๊กป้องกันคอมเพรสเซอร์ ปลั๊กรีเลย์เฟส ปลั๊กป้องกันไฟกระซาก
